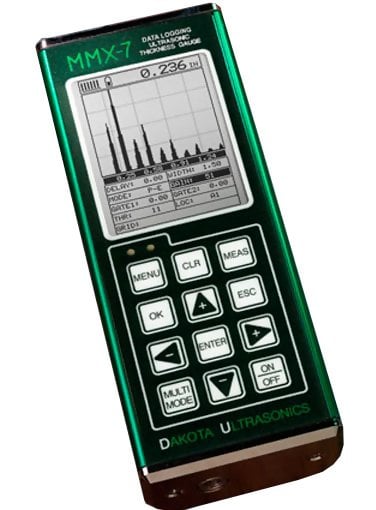

Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 with T-102-2700 Probe



Price: $ 2,325.00

Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003
Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 with Enhanced Data Logging with time based B Scan for a cross section view
Resolution:.001" (0.01 mm)
Datalogging:YES

The Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.

The Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.


line
Kit Contents
line

  • Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 With T-102-2700 Probe
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Traceable Calibration Certificate
  • Data Transfer Software
  • Serial Output
  • Carrying case
  • Instruction Manual


line
Features
line

  • The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • The MMX-7 also comes complete with our Windows PC software for transferring data to and from a PC.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
  • The MMX-7 has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • CE Certified
  • Includes NIST-Traceable Calibration Certificate
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • 2 Year Warranty


lineSpecificationsline

Range in SteelPulse-Echo Mode:Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)

Echo-Echo Mode:Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thick
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsEnglish & Metric
Measurement Modes- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint)
Transducer TypesDual Element (1 to 10 MHz).
Memory16 megabit non-volatile ram
Memory capacity12,000 pages with 1 reading and waveform per page
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offif idle 5 min
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys
CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14 to 140F (-10 to 60C)
Weight, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineRelated Productsline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

DataComm
Software for Thickness Gauges
ABQ

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 with T-102-2700 Probe $2,325.00
Accessories Price
T-102-3300 1/4" diameter, 7.5 MHz, dual element transducer, Side in, Potted $330.00
T-102-1000 - 1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted $295.00
T-104-1000 - 1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted $305.00
T-104-2000 - 1/2" diameter, 5.0 MHz dual element transducer, Side In, Potted $305.00
T-044-2000 - 1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot $380.00
T-102-2700 1/4" diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement, Side In, Potted $335.00
USB-RS232-ADAP RS232 to USB Adapter $35.00
TICC-MVX Protective Holder for for Long Body Ultrasonic Gauges, F-149-0001 $85.00
T-101-2000 3/16" diameter, 5.0 MHz dual element transducer, Side In, Potted $295.00
T-104-0600 1/2" diameter, 1.00 MHz dual element Composite transducer, Side In, Potted $350.00
T-212-2001 1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot $445.00
