DeFelsko KITUT1 PosiTector Standard Ultrasonic Inspection Kit with Standard Gauge Body, Corrosion Probe PRBUTGC, Multiple-Echo Probe PRBUTGM, Certified Step Block STDB1 Inch
Price: $ 3,220.00

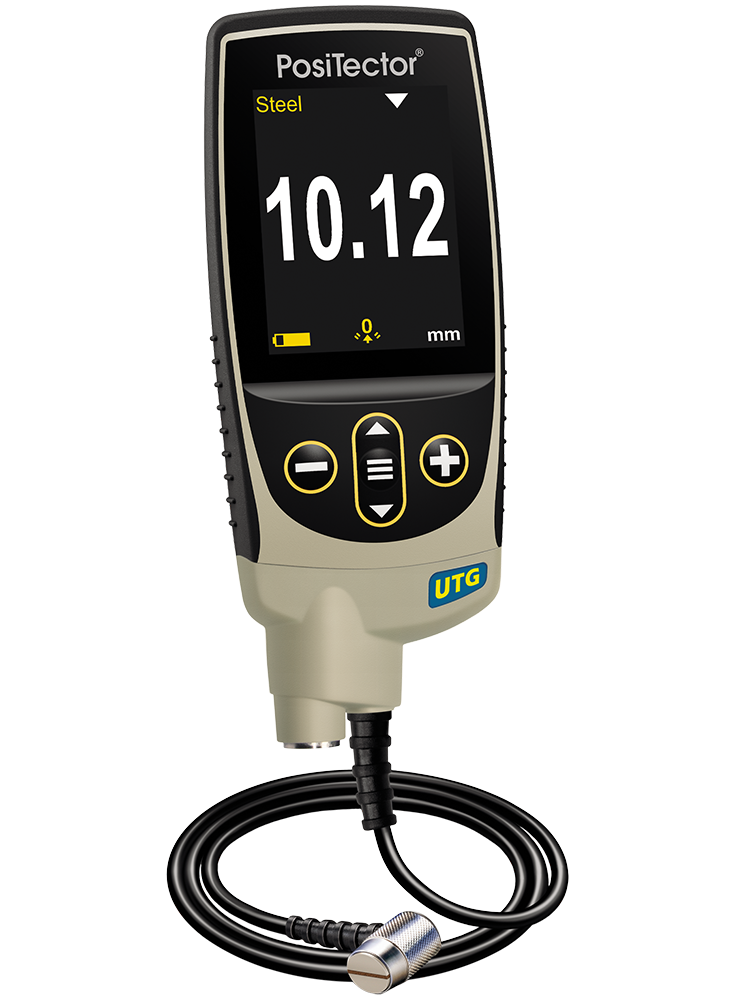

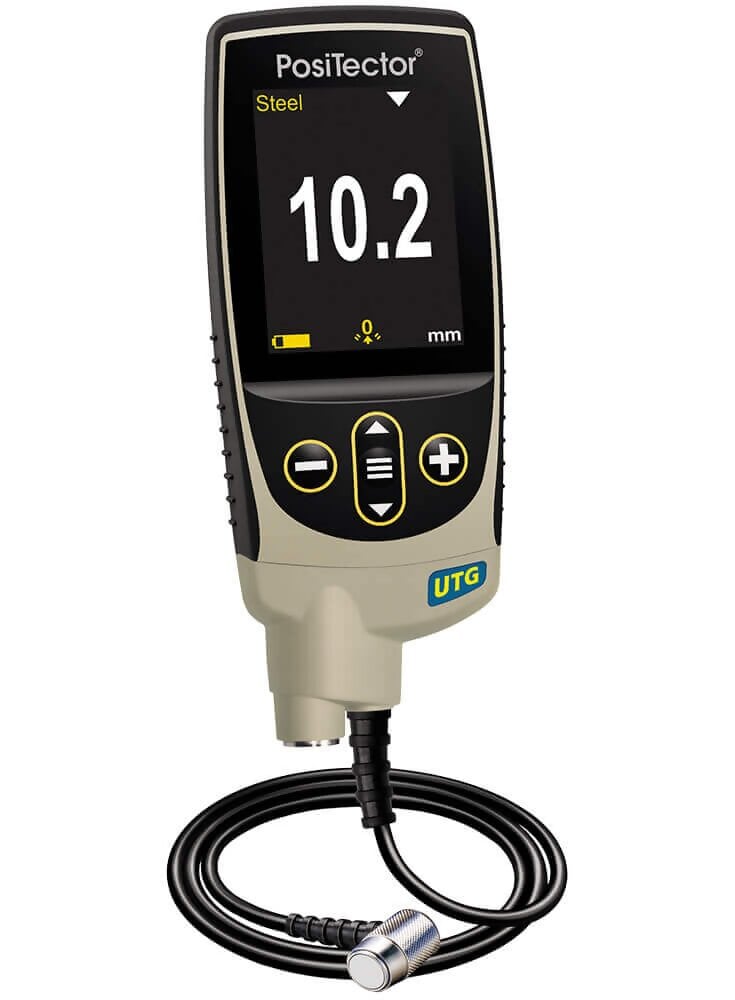

 The DeFelsko KITUT1 PosiTector Standard Ultrasonic Inspection Kit is Wall Thickness and Corrosion Assessment. The DeFelsko KITUT1 PosiTector Standard Ultrasonic Inspection Kit include both the PosiTector UTG C Corrosion probe and the PosiTector UTG M Multiple-Echo probe, along with a choice of Standard Gage Body and a Certified Step BlockInch. This combination provides a complete solution for measuring wall thickness on both heavily corroded and coated structures. The DeFelsko PosiTector UTG C (Corrosion) probe uses a dual element transducer to measure metal thickness through heavy corrosion or pitting, while the PosiTector UTG M (Multiple-Echo) probe uses a single element transducer to measure the thickness of new or lightly corroded structures automatically ignoring protective coatings.
Kit Contents
- PosiTector Standard Gage Body BDYSTD
- PosiTector UTG C Probe PRBUTGC
- PosiTector UTG M Probe PRBUTGM
- DeFelsko STDB1 Certified Step Block - Inch
- Couplant (Ultrasonic Gel)
- PosiSoft Software and USB Cable
- Protectiv Carrying Case and Instructions
- Two (2) Year Warranty
|  |
Features
Simple - Pre-programmed velocitiessimply select from a list of common materials or enter your own with ease
- Smart Couple mode eliminates unintentional decouplingensure continuous measurements while measuring on scaled or pitted surfacesideal for analyzing large areas using multiple passes
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable - NEW Weatherproof, dustproof, and water-resistantIP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
Accurate - Precision ultrasonic transducers provide fast, accurate readings
- Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Conforms to national and international standards including ASTM E797
Versatile - PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
- NEW Auto rotating display with Flip Lock
- Single or two point adjustment
- Inch/mm switchable
- Selectable display languages
- Extended cables available (up to 20 m/60 ft) for underwater or remote measuring
Powerful - Min Scan modetake continuous readings and record min/max thicknessesideal for quick inspection over a large area
- Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- NEW Screen Capturesave 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for reviewing and reporting data
- Every stored measurement is date and time stampe
Standard - NEW Storage of 250,000 readings in up to 1,000 batches and sub-batchesaded

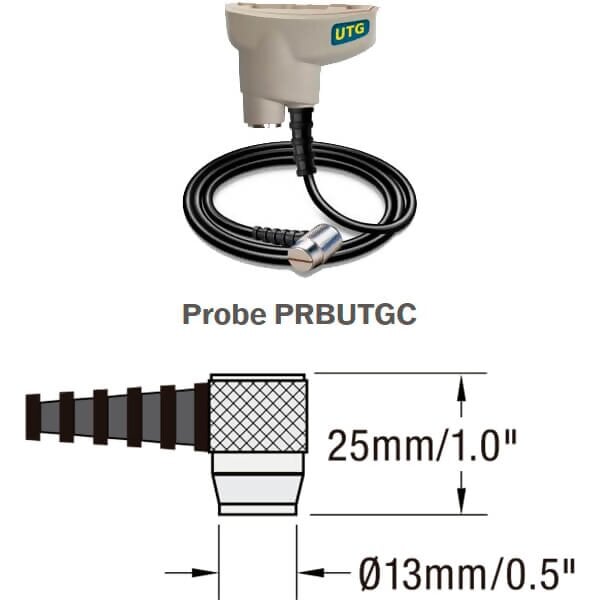

Probes - DeFelsko PRBUTGC Probe measures the wall thickness of materials such as steel, plastic, and more
- DeFelsko PRBUTGC ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
- DeFelsko PRBUTGC 5 MHz dual element transducer with durable PEEK probe tip
- DeFelsko PRBUTGC automatic V-Path compensation for thin materials

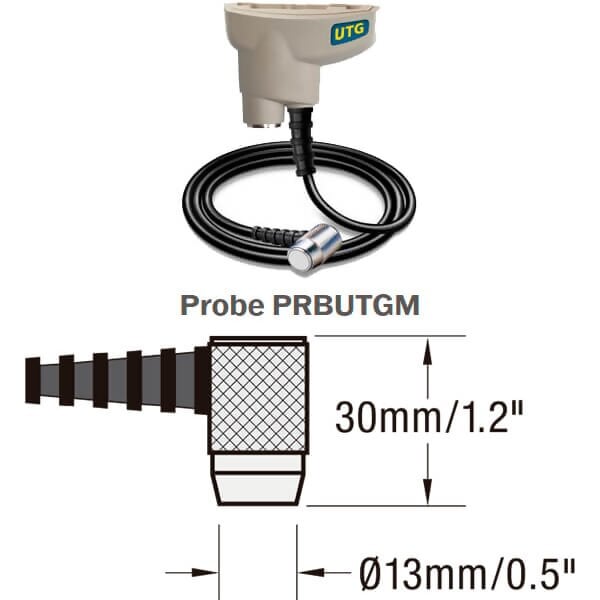

- DeFelsko PRBUTGM Probe features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating
- DeFelsko PRBUTGM also ideal for measuring applications requiring a more durable wear face
- DeFelsko PRBUTGM 5 MHz contact probe with wear resistant alumina probe tip
- DeFelsko PRBUTGM Multiple-Echo technique averages 3 or more echoes for accurate and reliable readings

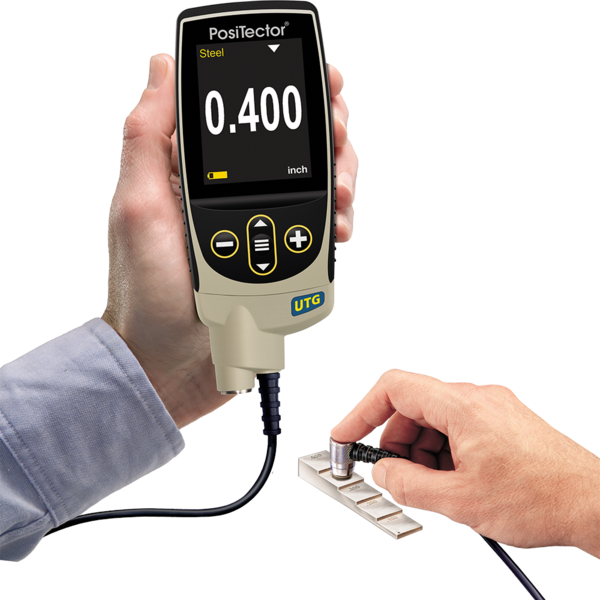

Certified Step Blocks - Ideal for checking calibration and operation of ultrasonic thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
- Made from 1018 steel and nickel-plated for corrosion and wear resistance
- Long-form Certificate of Calibration and Material Test Report included
- STDB1 Certified Step BlockInch
- 100, 200, 300, 400, and 500 mil steps
- Accuracy: 1 mil
- STDB1M Certified Step BlockMetric
- 2.5, 5, 7.5, 10, and 12.5 mm steps
- Accuracy: 0.025 mm
Specifications
| Probe Model | PRBUTGC | | Type | 5 MHz Dual Element | | Thru-Paint Capability (Multiple Echo) | No | | Measurement Range - Single Echo* | 0.040 to 5.000, 1.00 to 125.00 mm | | Resolution | 0.001, 0.01 mm | | Accuracy | 0.001, 0.03 mm | | Probe Model | PRBUTGM | | Type | 5 MHz Dual Contact | | Thru-Paint Capability | Yes | | Measurement Range - Single Echo* | 0.100 to 5.000, 2.50 to 125.00 mm | | Measurement Range - Multiple Echo* | 0.100 to 2.500, 2.50 to 60.00 mm | | Resolution | 0.001, 0.01 mm | | Accuracy | 0.001, 0.03 mm |
*Measurement range is for carbon steel and depends upon surface condition, temperature, and material
