DeFelsko UTGCA3-G PosiTector UTG CA3 Advanced Ultrasonic Thickness Gage With PRBUTGCA-C Corrosion Integral Probe Type 5 MHz Dual Element, Range 0.040" To 5.000"
Price: $ 1,685.00
Measuring Range: 0.040" to 5.000" - 1.00 to 125.00 mm

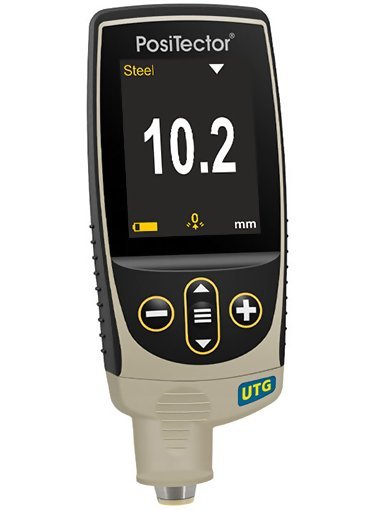

The DeFelsko PosiTector UTG CA3 Advanced Ultrasonic Thickness Gage with Integral Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo Thru-Paint models (PosiTector UTG M) measure the metal thickness of a painted structure without having to remove the coating.
Kit Contents
The DeFelsko PosiTector UTG CA3 Advaned Ultrasonic Thickness Gage Kit includes everything needed for testing: - PosiTector Advanced Gage Body BDYADV
- PosiTector UTG CA Probe PRBUTGCA
- Couplant (Ultrasonic Gel)
- Precision Plastic Shim(s)
- Protective rubber holster with belt clip
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration traceable to NIST
- Protectiv Carrying Case and Instructions
- Two (2) Year Warranty
|  |
Features
Simple - Pre-programmed velocitiessimply select from a list of common materials or enter your own with ease
- Smart Couple mode eliminates unintentional decouplingensure continuous measurements while measuring on scaled or pitted surfacesideal for analyzing large areas using multiple passes
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable - NEW Weatherproof, dustproof, and water-resistantIP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate - Precision ultrasonic transducers provide fast, accurate readings
- Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Conforms to national and international standards including ASTM E797
Versatile - PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
- NEW Auto rotating display with Flip Lock
- Single or two point adjustment
- Inch/mm switchable
- Selectable display languages
- Extended cables available (up to 20 m/60 ft) for underwater or remote measuring
Powerful - Min Scan modetake continuous readings and record min/max thicknessesideal for quick inspection over a large area
- Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- NEW Screen Capturesave 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for reviewing and reporting data
- Every stored measurement is date and time stamped
Standard Models Features
Includes ALL features as shown above plus: - NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded
Advanced Models Features
Includes ALL features as shown above plus: - NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- A-Scan with adjustable Gain and screen capture. UTG M and UTG P probes include dual cursors to measure the distance between echoes
- B-Scandisplays a cross sectional profile of the test material
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
