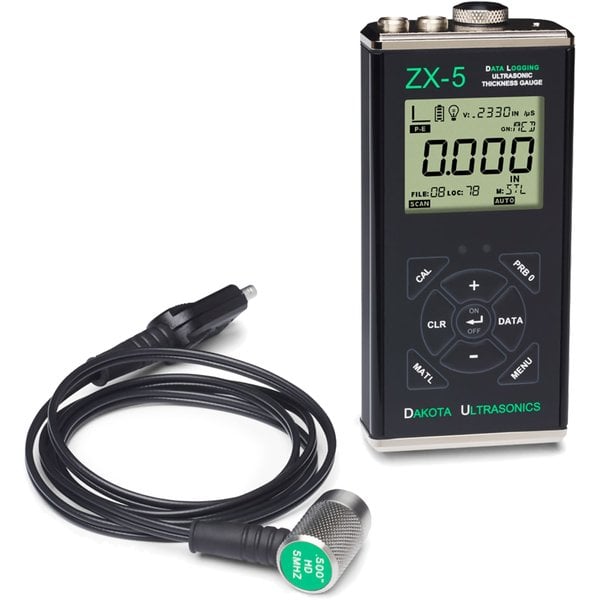

Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003 with T-102-2000 Probe
Similar Products to Consider
Calibrate to known thickness or Select Material from 8 Presets
Includes NIST-Traceable Calibration Certificate, CE-Certified
5-Year Warranty, Made in USA
Datalogging:YES
| Total Measuring Range (depends on material and transducer/probe type) 0.025 - 36.000 inches 0.63 - 914.4 mm | Measuring Range on Steel (with standard T-102-2000 probe) 0.040 - 8.00 inches 1.00 - 199.9 mm |
The Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003 with USB Output accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.
Incorporates built-in datalogging for 10,000 values with 250 readings per batch, up to 40 separate batches with USB Output. Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)
The Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003 Probe Z-304-0001 with USB Output permits the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.
The Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.

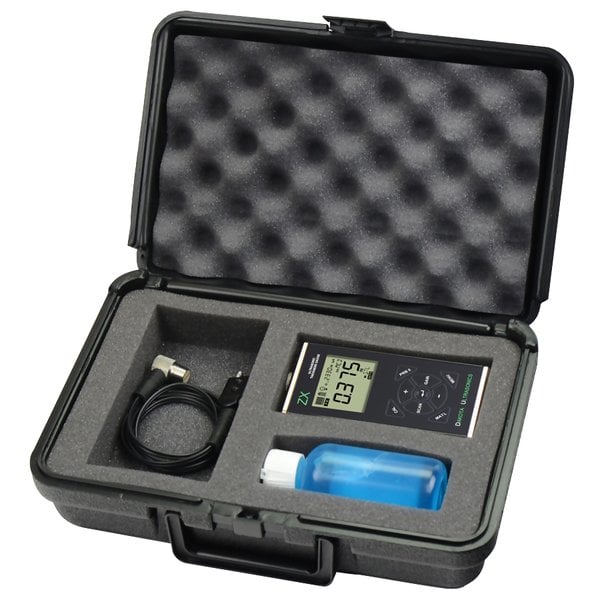

Kit Contents
- Dakota Ultrasonics ZX-5DL Data Logging Ultrasonic Wall Thickness Gauge Z-304-0001 / Z-304-0003
- Probe T-102-2000
- 4 oz. bottle of coupling fluid
- 2 AA batteries
- NIST Traceable Calibration Certificate
- Carrying case
- Instruction Manual
Features
- Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output.
- Includes NIST Traceable Calibration Certificate
- Data can be transferred into any program in ".csv" format or viewed in DAKVIEW4 Software (free download)
- User can select from 8 preset materials as well as program 2 custom material velocities
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data values
- Selectable Backlight ON/OFF/AUTO
- User-selected Manual or Auto Zero of Transducer
- Switch-selected units for inches or mm with Resolution of 0.001 inch (0.01 mm)
- 5 Year Warranty, CE-Certified and Made in USA
Specifications
| Total Measuring Range (Steel) | 0.025 - 36.000 inches 0.63 - 914.4 mm (depends on material and transducer/probe type) |
| Measuring Range (Steel) | 0.040-8.000 inches 1.00-199.9 mm (with standard transducer T-102-2000) |
| Resolution | 0.001 inch (0.01 mm) |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Velocity Range | 0.0120 to .7300 in/s. 305 to 18,542 meters/sec |
| Probe (Standard) | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300 |
| Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| Temp. Limits | Ambient: -30 to 75 C (-22 to 167 F) Material: -20 to 100 C (0 to 200 F) High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25") |
| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating | IP65 |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Keypad | Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
| To Lock Settings | With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display |
| To unLock Settings | With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off |
| GAIN Adjustment | Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB |
| Measuring Mode | Pulse-Echo (P-E) |
| Output Type | USB-C (plug-n-play, view files on PC which can be dragged and dropped) |
| Built-In Memory | 10,000 data values stored in up to 40 batches with 250 values/batch |
| Memory Type | Sequential data file (single column) |
| Warranty | Gauge: 5 Years Probes: 90 Days |
Measuring Limits
 | Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) |
| Minimum Radius for Concave Surfaces | 3" (76.2 mm) | |
| Minimum Headroom | 1" (25.0 mm) | |
| Minimum Sample Diameter | 0.150" (3.8 mm) | |
| Minimum Substrate Thickness - F | na | |
| Minimum Substrate Thickness - NFe | na |
