TI-44NA Ultrasonic Wall Thickness Gauge Kit with Integrated 5mhz, 10mm Probe



Price: $ 925.00

TI-44N Ultrasonic Wall Thickness Gauge
Economical Wall Thickness gauge for measuring on a variety of materials

Range: 0.040 - 8.00 inches - 1.00 - 200.00 mm


Resolution:.001" (0.01 mm)

Datalogging: NO
Detachable Probe:NO

Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

The new CHECK-LINE TI-44NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas. This product is similar to our TI-45NA, however the probe is hard-wired to the gauge and is NOT removable as in the TI-45N.

line
Photo Gallery
line

ABQ ABQ ABQ ABQ

line
Features
line

  • Resolution of 0.001" (0.01mm) with Switch-selectable units of inches or mm
  • Quick display update with last reading retained on the display
  • Extremely small & lightweight operating from a single AA battery
  • Display symbols alert user to poor coupling and low battery conditions
  • Fixed-mounted probe is connected to gauge with one meter flexible cable (39")
  • NIST-Traceable Calibration Certificate & Test Report is optionally available
  • Built-in calibration test plate on front of gauge housing

lineMeasuring Limitsline

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom3" (76.2 mm)
Minimum Sample Diameter0.5" (12.7 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena


lineSpecificationsline

Range in Steel0.040 - 8.000" (1.0 - 200.0 mm)
Resolution.001" (0.01 mm)
Display4 - digit LCD display, 0.39" (10mm) high with push button illumination
Velocity Range3,250 - 39,000 ft/sec
(1,000 - 12,000 m/sec)
continuously adjustable
Probe5 MHz, .39" (10 mm) diameter
Cable39" (1m) 2-wire, long cable with fixed-mounted to gauge body
Minimum Pipe Size1" nominal (30mm) steel pipe
Temp. LimitsAmbient: 25 to 125 F (-5 to 50 C)
Material: -15 to 140 F (-10 to 60 C)
Calibration Plate0.250" (6.35mm) steel plate, built into the front of the housing
Battery Type1x AA battery
Battery Life200 hours
WeightGauge: 7 ounces (200 g)
Size5.2" x 2.7" x 1.1"
(131 x 68 x 29 mm)
WarrantyGauge: 1 years
Probe: 90 days
Accessories Included2 Ounce bottle of couplant


lineComplete Kitline

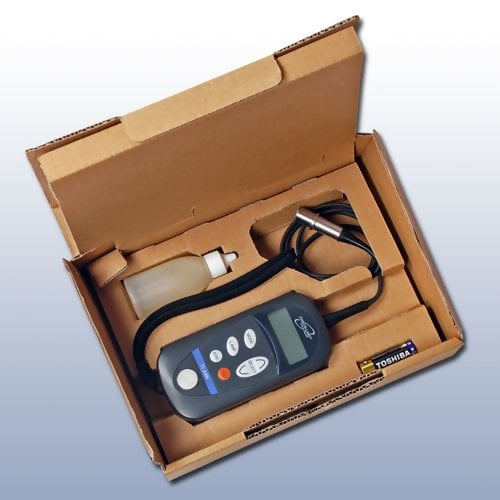

The TI-44NA is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, battery and instruction manual -- all supplied in a cardboard pack as shown

lineRelated Productsline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

TI-45N
Ultrasonic Wall Thickness Gauge
  • Resolution of 0.001" (0.01mm)

line

SB4
Steel Test Block without certification

  • For convenient confirmation of thickness gauge calibration

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

lineDownloadsline

TI-44NA Ultrasonic Wall Thickness Gauge - Certificate
TI-44NA Ultrasonic Wall Thickness Gauge - Instruction Manual

lineBuy Nowline


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
TI-44NA Ultrasonic Wall Thickness Gauge Kit with Integrated 5mhz, 10mm Probe $925.00
Accessories Price
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries and Charger Kit $35.00
NISTCAL NIST Calibration Certificate $100.00
CF4-MAX Coupling Fluid - 4oz $15.00
